Hydraulic Shear

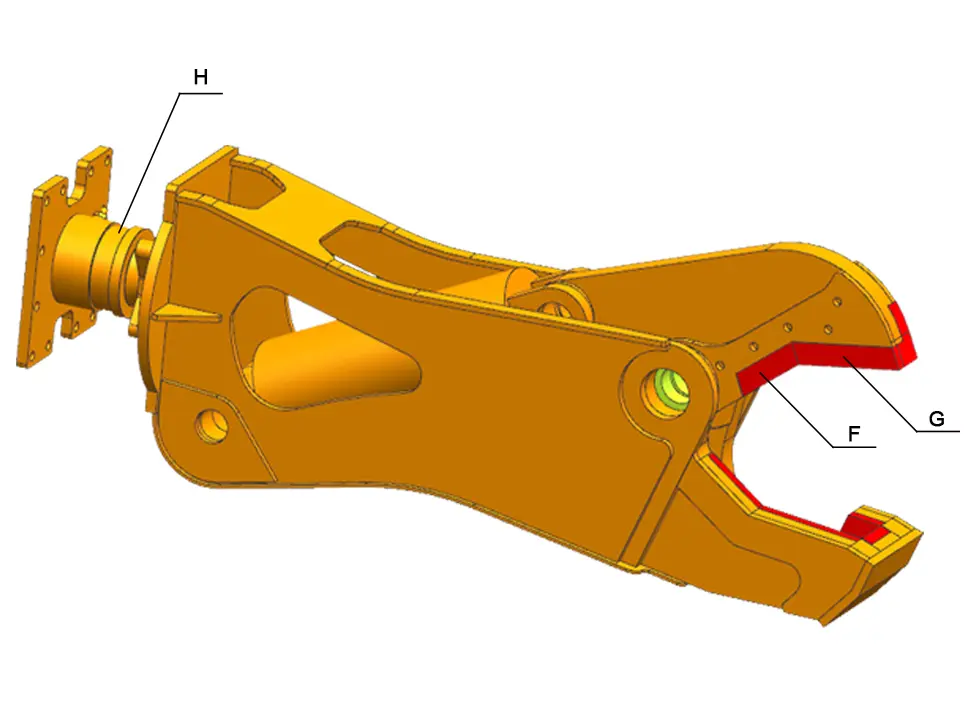

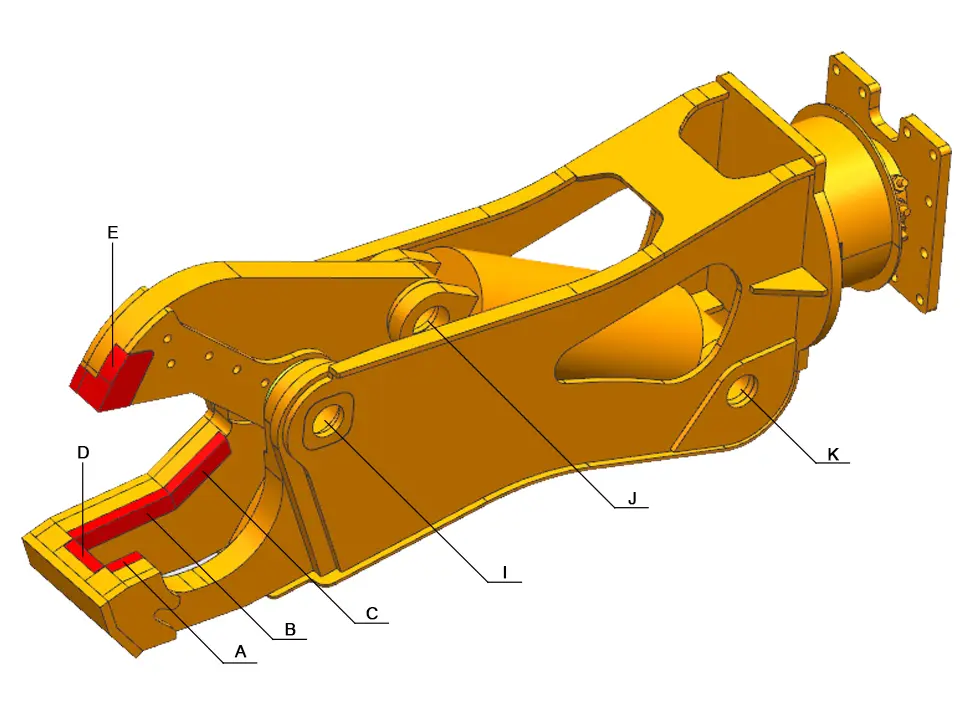

Main Components
| NAME | PRODUCT NUMBER | |
|---|---|---|
| Lower blade | A | XDPYZJAK0425X01 |
| Lower blade | B | XDPYZJAK0425X02 |
| Lower blade | C | XDPYZJAK0425X03 |
| Lower blade | D | XDPYZJAK0425X04 |
| Upper blade | E | SDPYZJAK0425S01 |
| Upper blade | F | SDPYZJAK0425S02 |
| Upper blade | G | SDPYZJAK0425S03 |
| Rotary motor | H | MDYZJAK0425M01 |
| Spindle | I | ZZYZJAK0425Z01 |
| Cylinder front axle | J | YGQZAK0425YQ01 |
| Cylinder rear axle | K | YGHZAK0425YH02 |
